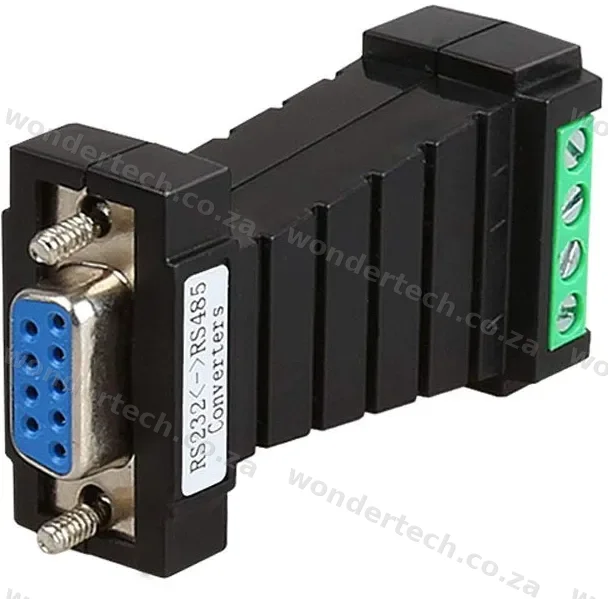

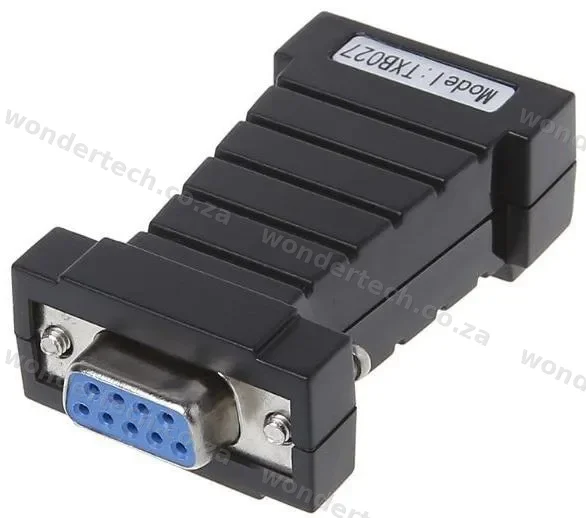

RS232 TO RS485 - TXB027

Model number: TXB027

Chipset: ZT323+ZT485

Port number: 1 x fe-male com port,1 x RS485 port

Standard: compatible with RS232 and RS485 standard

LED Indicator: NA

Baud rate: 300bps - 115200bps

Dimension: 57 x 34 x 19mm

Power Input: No need or DC9V

Power Consumption:  Max0.15W

Environment

Operating Temperature: -10 -55

Relative Humidity: 10%-90% (non-condensing)

Storage Temperature: -40 - 85

Relative Humidity: 5%-90% (non-condensing)
