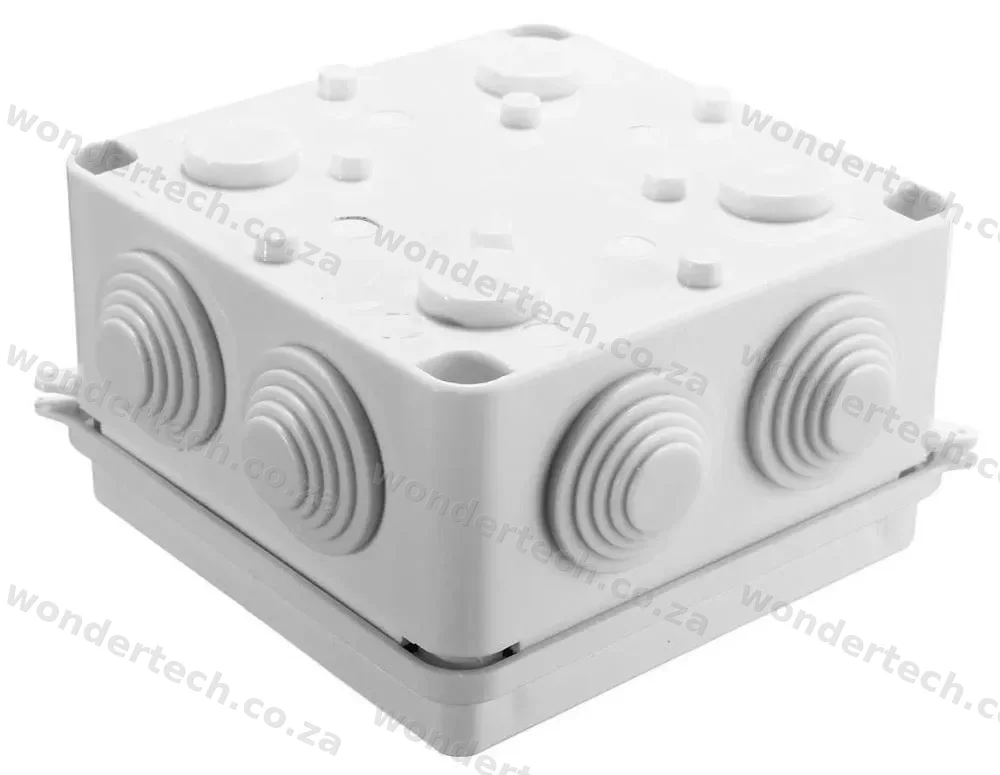

CCTV CAMERA BOX - 100X70

A CCTV Camera Box with the "100 x 70"

Designation Typically Refers To A Waterproof Junction Box

100mm x 100mm x 70mm (Length x Width x Height)

These Enclosures are Primarily used to House Cable Termination

And Protect Camera "Pigtails" From Moisture and Corrosion

Specifications

External Dimensions: 100mm x 100mm x 70mm

Internal Dimensions: Approximately 90mm x 90mm x 65mm to 100mm x 100mm x 60mm

Ingress Protection (IP) Rating: Most common Units are Rated IP65

(Dust-Tight And Protected Against Water Jets)

Material: Typically Constructed from High-Quality ABS plastic or PVC

Often Featuring Rubber Grommets for Cable Seals

Cable Entries: Generally features 7 to 8 Removable Rubber Grommets

(approx. 25mm–26mm diameter) for easy DIY cable routing without cutting

Installation & Features

Mounting: Designed for Surface Mounting on Walls or Ceilings

Durability: Most units are UV Resistant and Impact Resistant, with an Operating Temperature range of roughly -25°C to +55°C

Closure: Typically uses a Press-On or Screw-On Cover secured by four plastic corner screws to prevent rusting
